40kW DC

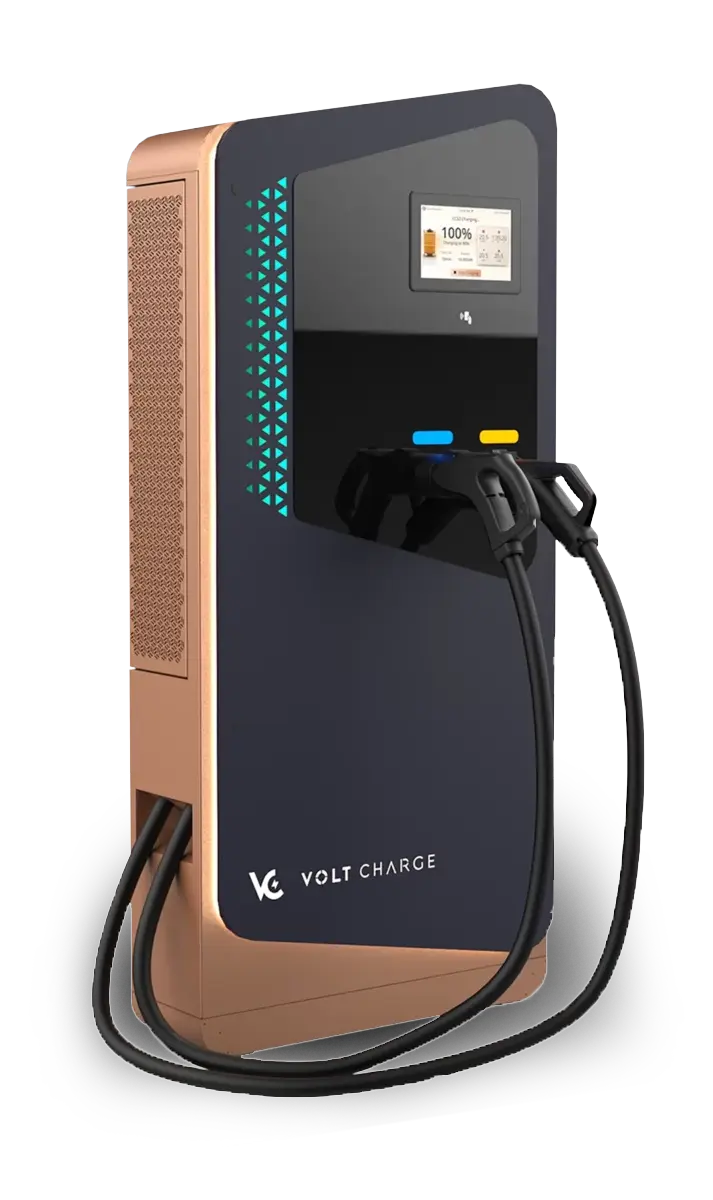

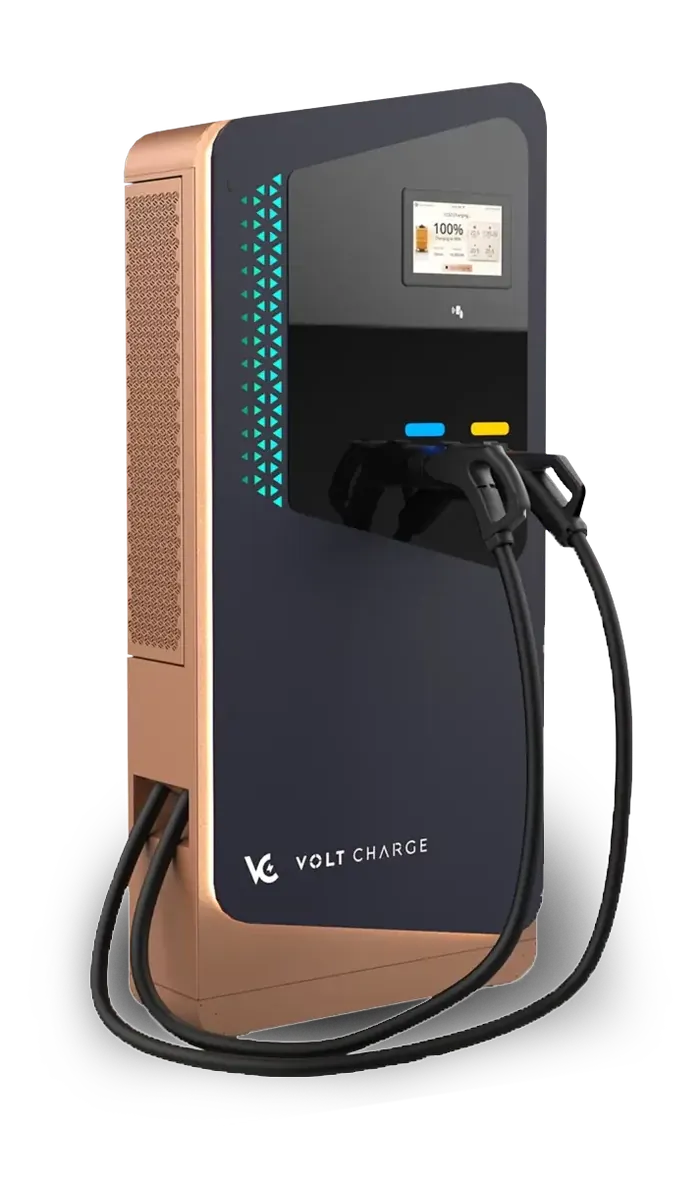

40kW DC Fast Charger
Rapid Energy. Minimal Design. Maximum Impact.
Key Highlights
Fast charging. Smart control. Effortless every day.

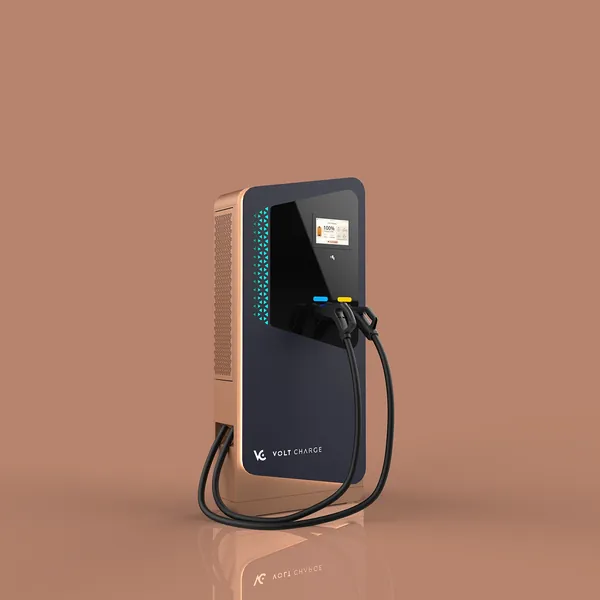

Award Winning Design

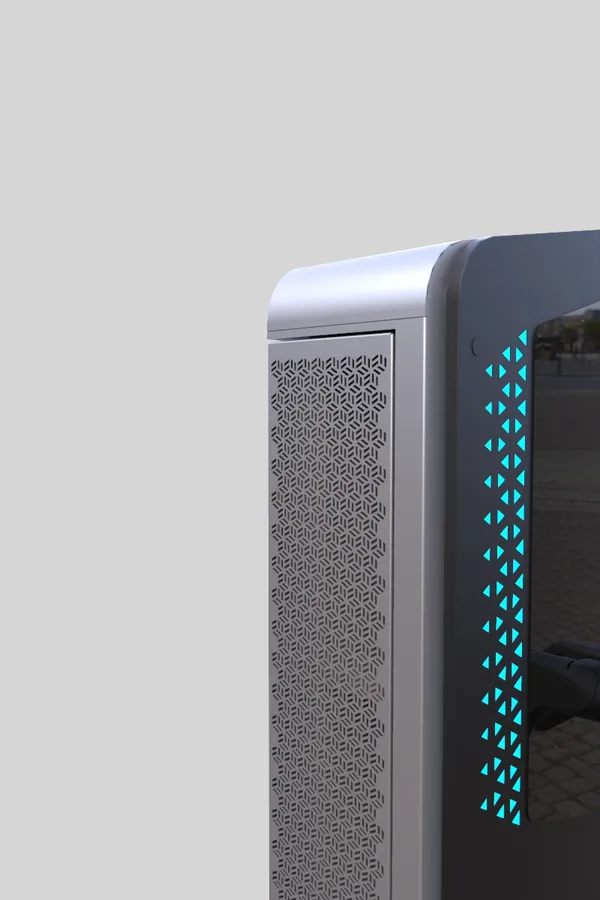

Charging Capacity Up to 40kW
Made to Withstand Harsh Weather
Reliable in every charge
Engineered for consistency and durability, ensuring smooth performance day after day.
Inquire Now
Bold on the power
95％ Charge in (40kW)
BYD Atto
2-3 hrs*
Mercedes EQS
2-3 hrs*
BMW i7
6-7 hrs*About the charger
Built for Performance. Designed for Everyday.
40kW DC Fast Charging Capacity
Input Connection 3L+N+PE
Award Winning Elegant and Sleek Design
4G, WIFI, Bluetooth, Mobile App Connected
Operating Temperature: –30°C to +60°C
IP54 Rated Environment Protection

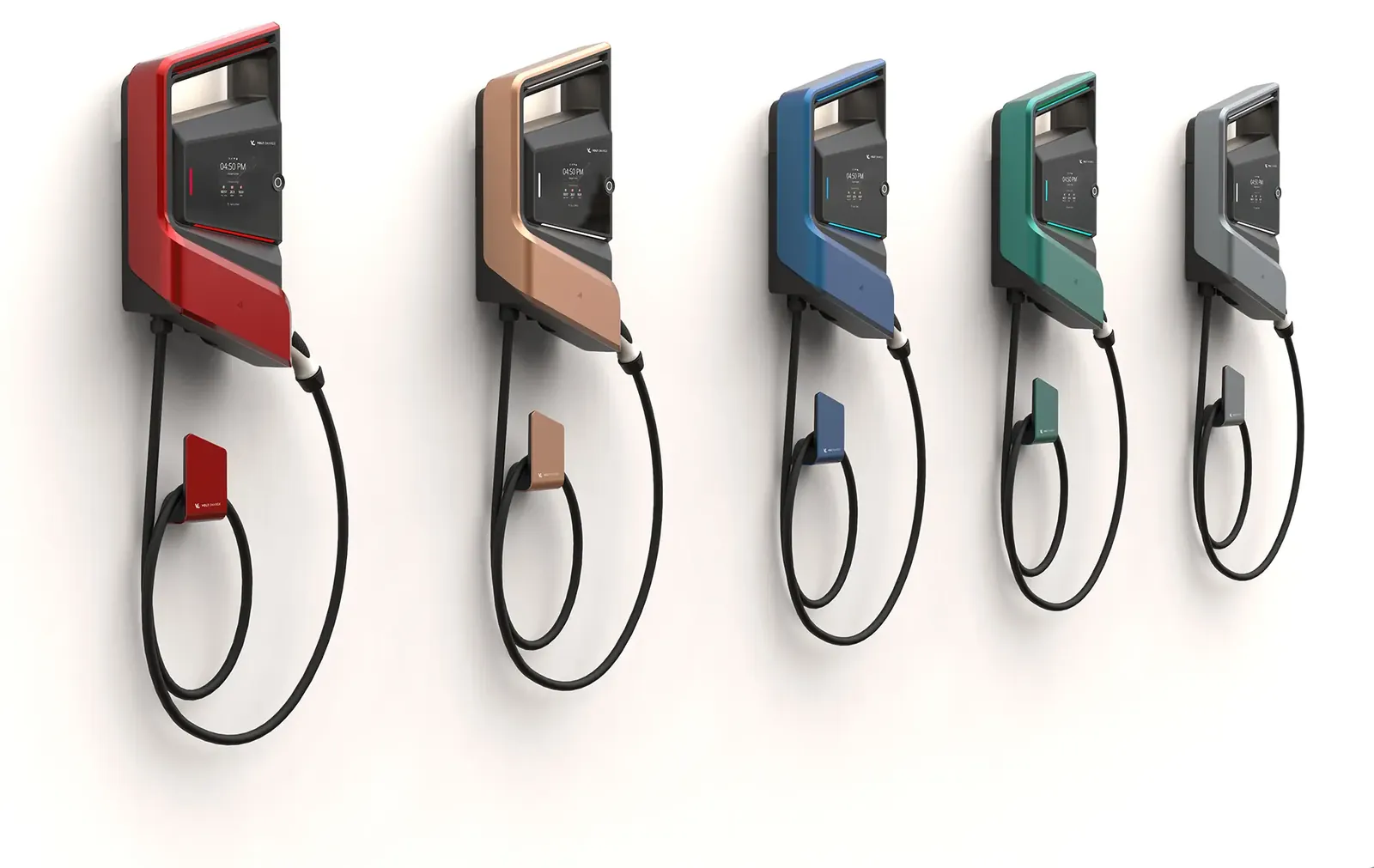

Your Charger, Your Style
Get started
Power Your Drive with Smarter, Sleeker, Powerful Charger Today
Reliable charging made for everyday life.
Contact UsProduct Specifications
Technical Specifications That Power Performance
- Charging Power
- 40kW Max.
- Input Connection
- 3L+N+PE
- Input Voltage
- 400 V ±10% (P-P)
- Input Frequency
- 45-65 Hz
- Input Current/Power
- 60 A 84 kVA
- Power Factor
- ≥ 0.96
- Total Harmonic Distortion
- ≤ 5%
- Output Voltage
- CCS2: 150 - 1000 Vdc, CHAdeMO: 150V - 500V
- Output Current
- CCS2: 0 - 200 Adc CHAdeMO: 0 – 125 Adc
- Efficiency
- ≥95%
- Charging Protocols
- IEC61851 / DIN70121 / ISO15118 /CHAdeMO 1.0.1
- Smart Authentication
- ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, App
- Network Connection
- WIFI
- Communication Method
- OCPP 1.6 / 2.0.1
- User interface
- 10.1" High brightness color touch display
- Cooling system
- Air cooling
- Operating Temperature
- -30°C to +60°C (Derating may apply)
- Storage Temperature
- -35°C to +70°C
- Environment Protection
- IP54
- Cable length
- 5 m
- Dimensions (H x W x D)
- 1800(H) x 810(W) x 280(D) mm
- Weight
- 140 kg
- Warranty
- 1 Year
