SRI LANKA

Volt Charge Sri Lanka is a registered Sri Lankan company headquartered in Colombo,

committed to manufacturing next-generation electric vehicle chargers. With state-of-the-art

R&D and manufacturing facilities based in Sri Lanka, we deliver a diverse range of EV

chargers tailored to perform reliably in challenging environmental conditions.

Our chargers feature cutting-edge designs and proprietary software, Halo Connect, which

seamlessly integrates with various technological platforms and local systems, providing

enhanced value-added functionalities.

Volt Charge Sri Lanka is a subsidiary of JAT Holdings PLC Sri Lanka.

chargers are compatible with all the latest EVs in the market.

JAT Holdings PLC

Since its incorporation in 1993, the JAT Group has expanded its operations into manufacturing, trading,

property development, telecommunication, steel fabrication and agriculture. JAT has established itself as the

undisputed market leader in Sri Lanka, Bangladesh and the Maldives for wood coatings for over 20 years and

is the no. 1 partner in the world in terms of volume for its flagship brand, Sayerlack as attested by Sherwin

Williams (the world’s largest paint company). In addition to its strong wood coatings brand portfolio,

JAT represents global renowned brands in varied spheres such as Harris –brushes, Herman Miller – USA’s

leading ergonomic office furniture, Knauf –ceiling solutions (largest ceiling company in the world), SEA

Bauformat for bespoke German kitchens etc. while having the Company’s homegrown brands such as WHITE

by JAT –brilliant white paint, J Chem –solvent based paints, Brush Master –brushes for wood coatings, Euro

Metallic –metal ceilings etc.

While having a fully fledged manufacturing plant in Sri Lanka, through funds of the IPO of last

year, JAT has set up a manufacturing plant in Bangladesh too.The Company has also ventured

into India and in the recent past to the African region which comprises Ghana, Kenya, Uganda

etc.. JAT has been recognized as one of the country’s leading conglomerates, by accolades

such as being ranked amongst Sri Lanka’s

‘Top 100 Most Respected Companies’ by LMD for four years consecutively and also ranking

among the ‘Top 20 Conglomerate Brands’ by Brand Finance.

Further, JAT has won many international accolades such as the winner of ‘wood pencil’ at

D&AD awards at London, Gold for Petal Paint at Adfest at Thailand, Silver at ADC Global at

New York, Silver at Dragons of Asia, Gold at MAA Globes etc.

JAT also received the coveted Moody’s ICRA ‘A+ Stable’ rating for 6 years consecutively and is

within the top 100 listed companies of Colombo Stock Exchange based on the market

capitalization. Further,

JAT has won overall bronze award at the National Business Excellence Awards and Top 10

award in the manufacturing sector at CNCI Achiever Awards for its manufacturing capabilities.

What We Do

Consultation

Research and Development

Installation and Implementation

Manufacturing

Maintenance and Support

Services

Civil and Electrical Work

Provides complete civil and electrical services required for installing

an EV charger, including concrete bases, building wiring, and

painting.

Customized Hardware and Software

Provides customized hardware and software solutions tailored to

users' requirements and seamlessly integrates them into existing

systems.

Customized Branding

▶Charger exterior color and logo customization

▶Charger display user interface customization

▶Mobile app user interface customization

▶Charger dashboard interface customization

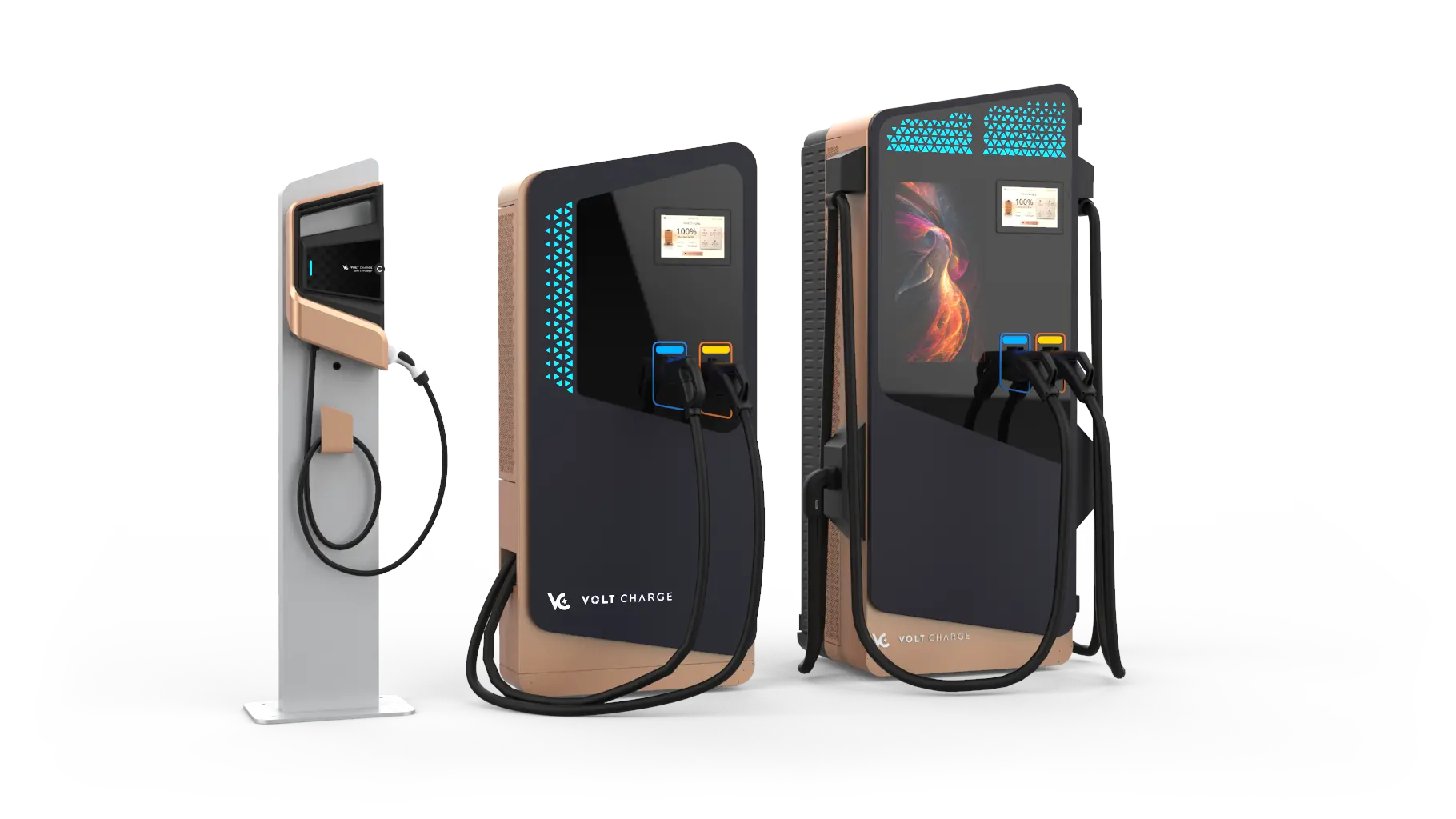

Product Range

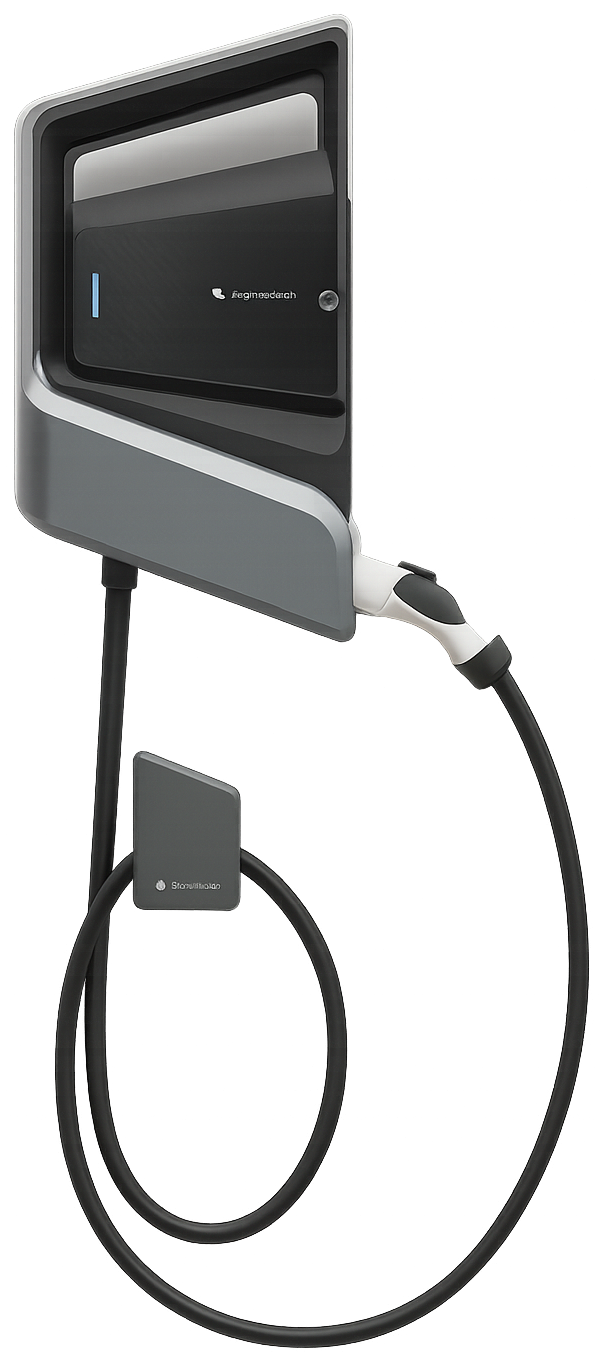

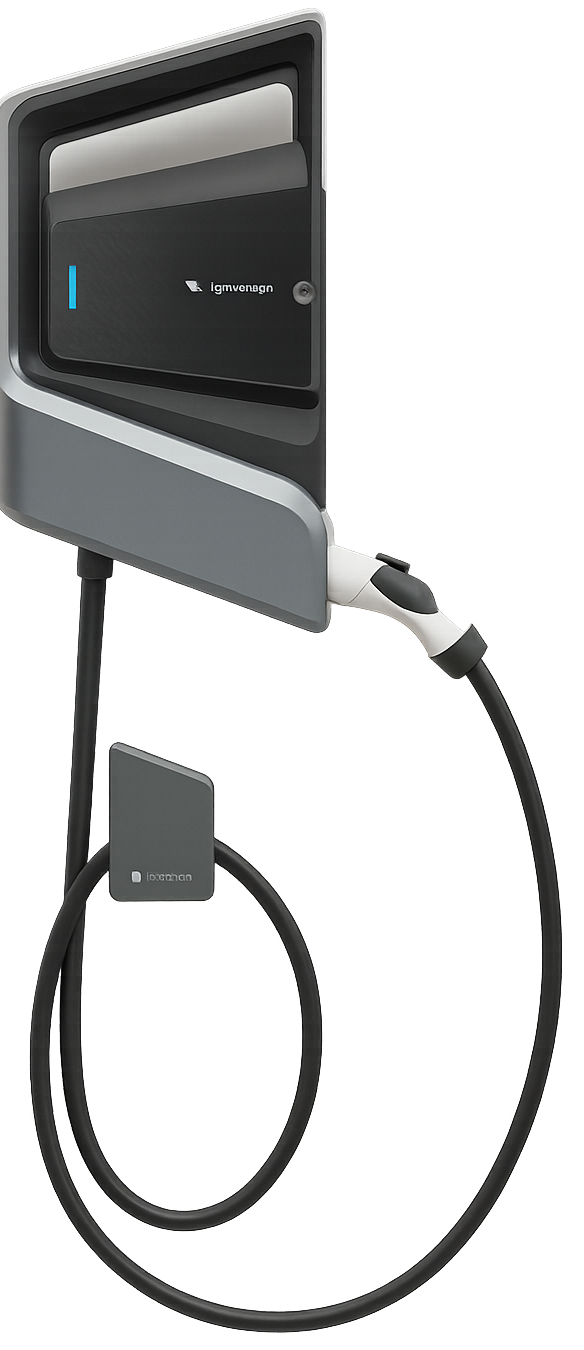

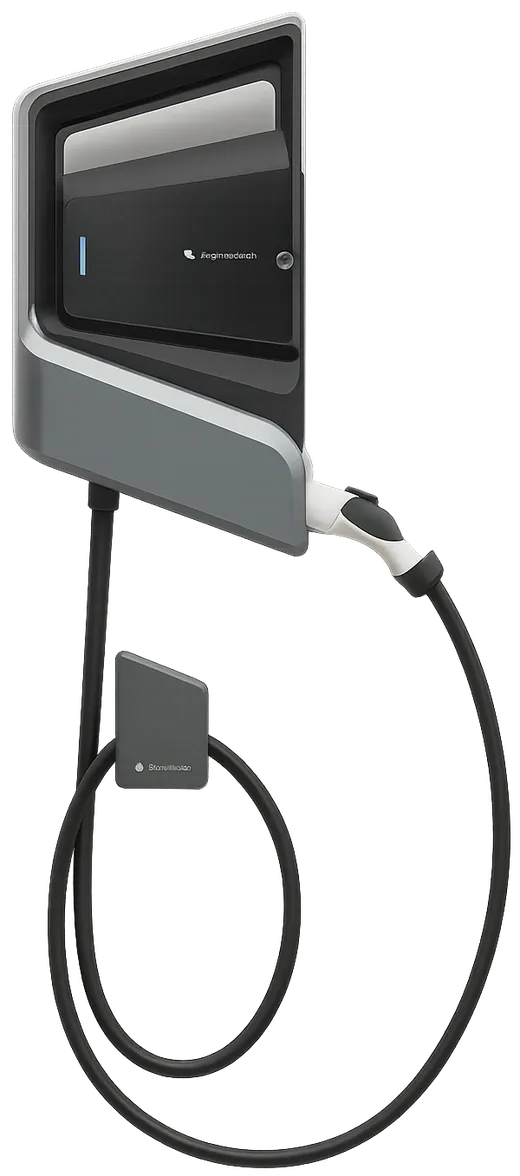

Level 2 AC Charger -

Premium

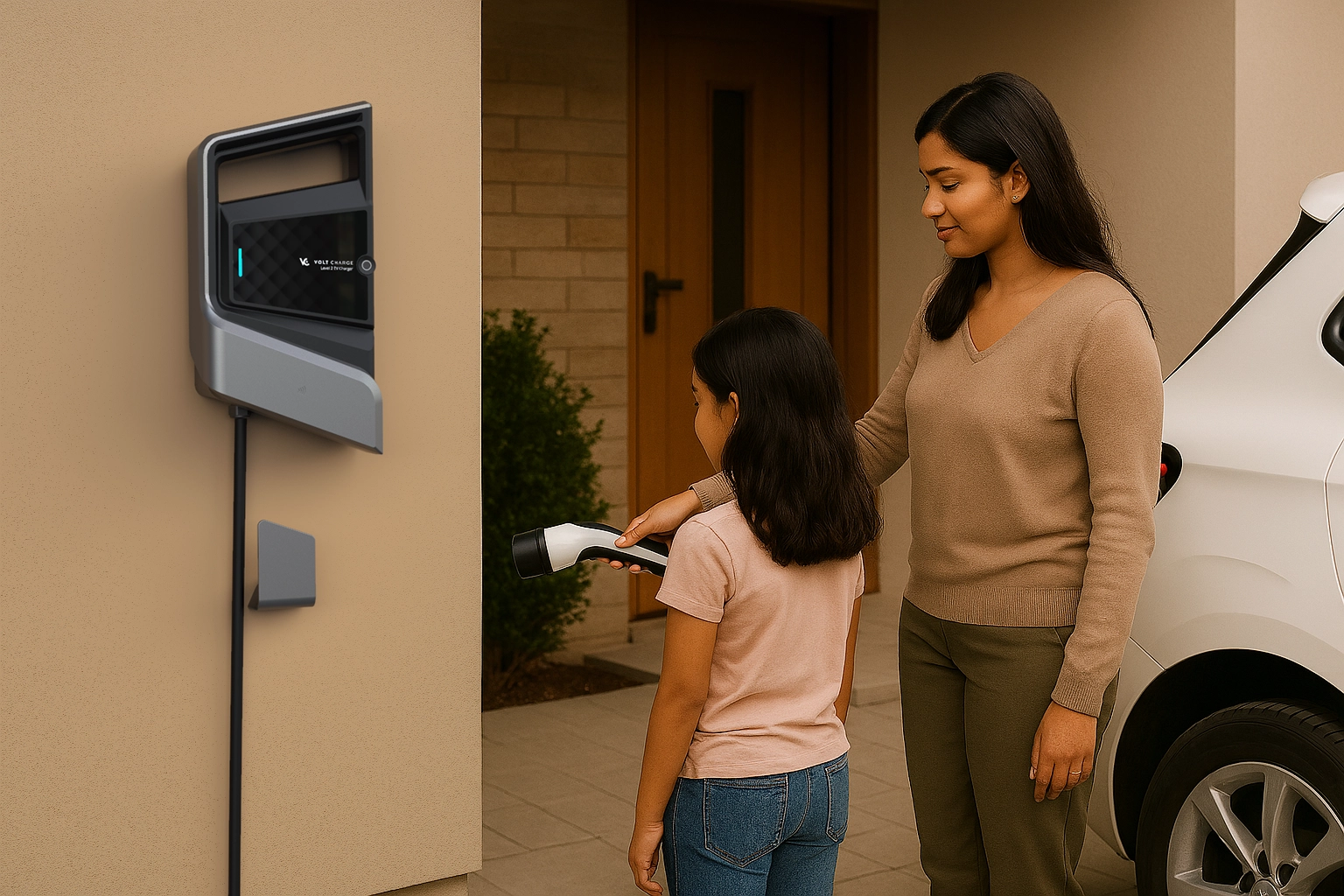

Home Commercial

6.6kW / 11kW / 22kW Charging Capacity

Type 1 or Type 2 Connector

7” Color Touch Screen Display

Award Winning Elegant and Sleek Design with

Ambient Lighting

4G, WIFI, Bluetooth, Mobile App Connected

Operating Temperature up to 60oc

IP65 Rated Environment Protection

Tested in Germany

BYD Atto

2-3hrs*

Mercedes EQS

2-3hrs*

BMW i7

5-6hrs*

50% Charge in (22kW)

Approved

Specifications

▶Charging Power –22kW Max.

▶Charging Current –32A Max.

▶Input Connection –3L+N+PE

▶Input Voltage –400 V ±10% (3 Phase)

▶Input Current –32A Max

▶Input Frequency–45-65 Hz

▶Connector Type –IEC 62196-2 Type 2 / J1772 Type 1

▶Residual Current Detection –DC 6 mA / AC 30 mA

▶Smart Authentication –ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa, App

▶User Interface –7" High brightness colour touch display

▶Communication Method –OCPP 2.0.1

▶Connectivity –3G / 4G / WIFI/ Ethernet / Bluetooth

▶Operating Temperature –-25°C to +60°C (Derating may apply)

▶Storage Temperature –-35°C to +70°C

▶Environment Protection –IP65

▶Humidity – ≤ 95％RH，non-condensing

▶Status Indication –LED Strips and rings charging indicators

▶Cable length –5M

▶Dimensions (H x W X D) –295(L) x 580(H) x 140(D) mm (without cable)

▶Weight –10Kg

▶Warranty –3 years

▶Payment Terminal –Included

▶Charging Management Software –Included

Tested in Germany

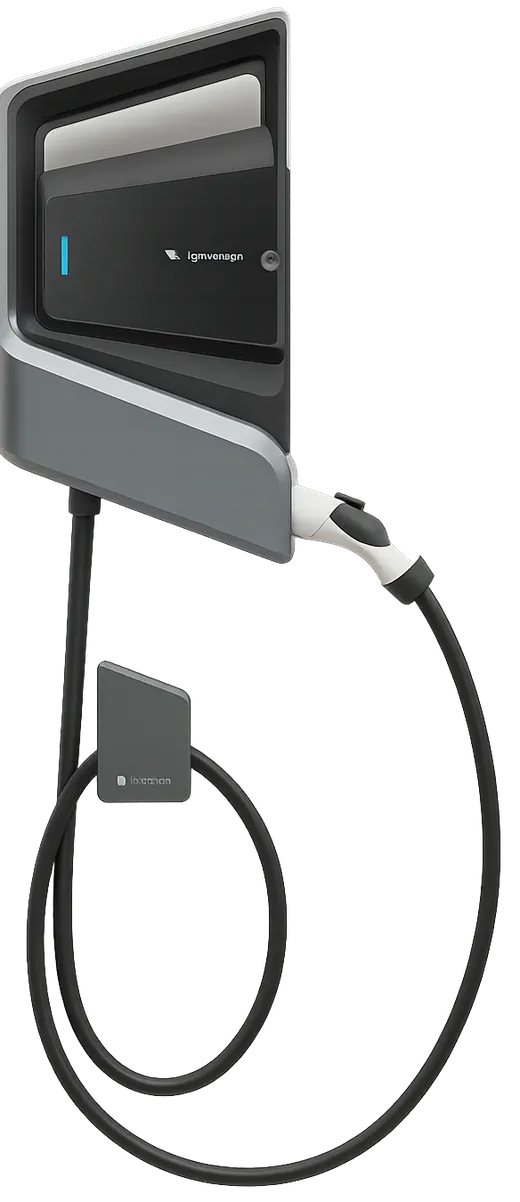

Level 2 AC Charger -

Basic

Home Commercial

6.6kW / 11kW / 22kW Charging Capacity

Type 1 or Type 2 Connector

Award Winning Elegant and Sleek Design

4G, WIFI, Bluetooth, Mobile App Connected (Limited

Features)

Operating Temperature up to 60oc

IP65 Rated Environment Protection

BYD Atto

2-3hrs*

Mercedes EQS

2-3hrs*

BMW i7

5-6hrs*

50% Charge in (22kW)

Tested in Germany Approved

▶Charging Power –22kW Max.

▶Charging Current –32A Max.

▶Input Connection –3L+N+PE

▶Input Voltage –400 V ±10% (3 Phase)

▶Input Current –32A Max

▶Input Frequency–45-65 Hz

▶Connector Type –IEC 62196-2 Type 2 / J1772 Type 1

▶Residual Current Detection –DC 6 mA / AC 30 mA

▶Smart Authentication –ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, FeliCa, App

▶Communication Method –OCPP 2.0.1

▶Connectivity –WIFI / Ethernet / Bluetooth (Limited Features)

▶Operating Temperature –-25°C to +60°C (Derating may apply)

▶Storage Temperature –-35°C to +70°C

▶Environment Protection –IP65

▶Humidity – ≤ 95％RH，non-condensing

▶Status Indication –LED charging indicators

▶Cable length –5M

▶Dimensions (H x W X D) –295(L) x 580(H) x 140(D) mm (without cable)

▶Weight –10Kg

▶Warranty –3 years

▶Payment Terminal –Included

▶Charging Management Software –Included

Specifications

Accessories

Vehicle

Barrier

Pedestal

Roof

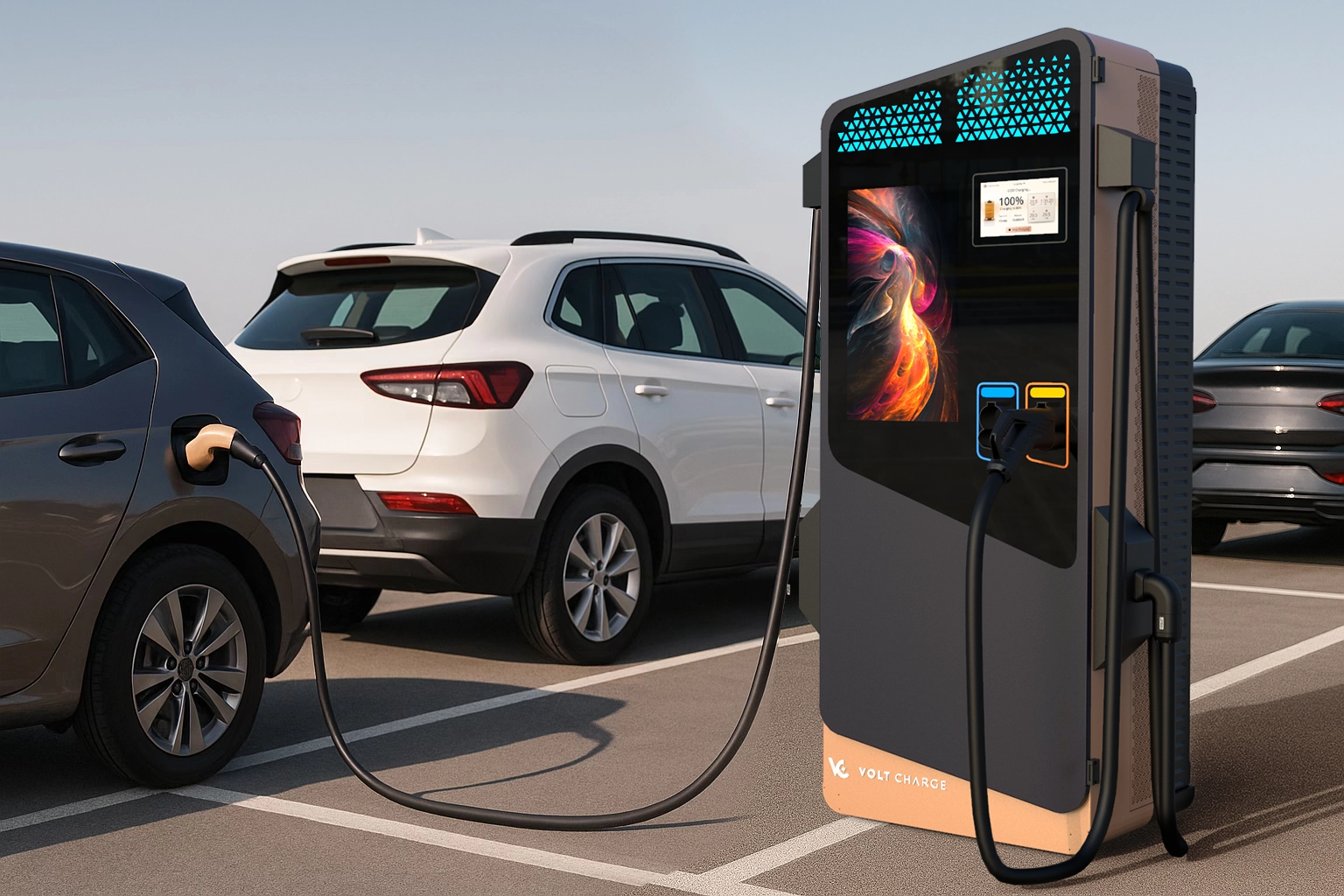

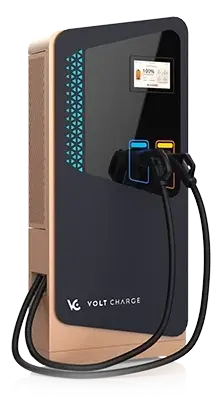

30/60kW DC Fast

Charger Commercial

30kW / 60kW Charging Capacity

CCS2 Connector (CHAdeMO Optional)

10.1” Color Touch Screen Display

Modern Design

4G, WIFI, Bluetooth, Mobile App Connected

Operating Temperature up to 60oc

IP54 Rated Environment Protection with IP65 Rated

Power Modules

BYD Atto

50-60min*

Mercedes EQS

45-50min*

BMW i7

50-60min*

50% Charge in (60kW)

▶Charging Power –60kW Max.

▶Input Connection –3L+N+PE

▶Input Voltage –400 V ±10% (P-P)

▶Input Frequency–45-65 Hz

▶Input Current and Power –90 A 62 kVA

▶Power Factor – ≥ 0.96

▶Total Harmonic Distortion – ≤ 5%

▶Output Voltage –CCS2: 150 - 1000 Vdc, CHAdeMO: 150V - 500V

▶Output Current –CCS2: 0 - 150 Adc, CHAdeMO: 0 - 125 Adc

▶Efficiency – ≥95%

▶Charging Protocols –IEC61851 / DIN70121 / ISO15118 / CHAdeMO 1.0.1

▶Smart Authentication –-ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, App

▶Network Connection –3G / 4G / Ethernet / WIFI

▶Communication Method –OCPP 1.6 / 2.0.1

▶User interface –10.1" High brightness color touch display

▶Cooling system –Air cooling

▶Operating Temperature –-30°C to +60°C (Derating may apply)

▶Storage Temperature –-35°C to +70°C

▶Environment Protection –IP54

▶Cable length –5 m

▶Dimensions (H x W x D) –1800(H) x 810(W) x 280(D) mm

▶Weight –130 kg

▶Warranty –3 Years

Specifications

150kW DC Fast

Charger Commercial

90kW / 120kW / 150kW Charging Capacity

CCS2 Connector (CHAdeMO Optional)

10.1” Color Touch Screen Display

Modern Design

4G, WIFI, Bluetooth, Mobile App Connected

Operating Temperature up to 60oc

IP54 Rated Environment Protection with IP65 Rated

Power Modules

BYD ATTO

20-25min*

Lucid Air Pure

20-25min*

BMW i7

20-25min*

50% Charge in (150kW)

▶Charging Power –150kW Max.

▶Input Connection –3L+N+PE

▶Input Voltage –400 V ±10% (P-P)

▶Input Frequency–45-65 Hz

▶Input Current and Power –230 A 159 kVA

▶Power Factor – ≥ 0.96

▶Total Harmonic Distortion – ≤ 5%

▶Output Voltage –CCS2: 150 - 920 Vdc / CHAdeMO: 150V-500 Vdc

▶Output Current –CCS2: 0-350 Adc / CHAdeMO: 0-200 Adc

▶Efficiency – ≥95%

▶Charging Protocols –IEC61851 / DIN70121 / ISO15118 / CHAdeMO 1.0.1

▶Smart Authentication –-ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE®, App

▶Network Connection –3G / 4G / Ethernet / WIFI

▶Communication Method –OCPP 2.0.1

▶User interface –10.1" High brightness color touch display

▶Cooling system –Air cooling

▶Operating Temperature –-30°C to +60°C (Derating may apply)

▶Storage Temperature –-35°C to +70°C

▶Environment Protection –IP54

▶Cable length –5 m

▶Dimensions (H x W x D) –2030(H) x 810(W) x 604(D) mm

▶Weight –370 kg

▶Warranty –3 Years

Specifications

Charging

Solutions

Halo Connect is a ubiquitous, adaptive, and responsive Software Ecosystem designed to

empower people's lifestyles. While chargers and the related hardware power up the physical

devices, HC will be the representational system that integrates various cross sections of lifestyle

interactions of people.

Software

Solution

▶Total management of charger assets

▶Anytime anywhere live monitoring

▶Operational delegations for seamless business operations of the charger system

▶Context-integrated operational enablement

▶Intelligent hassle-free report generation for business decisions

▶Easy and deep customer reach

▶External system integration

EV Charging

Network

With a full customizable EV Charging Network solution, a vast number of value additions are

possible by integrating the EV Charging to various other services and systems. For example,

Buy a coffee and get a discount with your EV charging automatically.

Push advertising based on route, charge stop and past history of

customer interactions.

Sync with power generation companies to give discounts or charge

premiums based on system demand, helping to Smoothen the national

power grid.

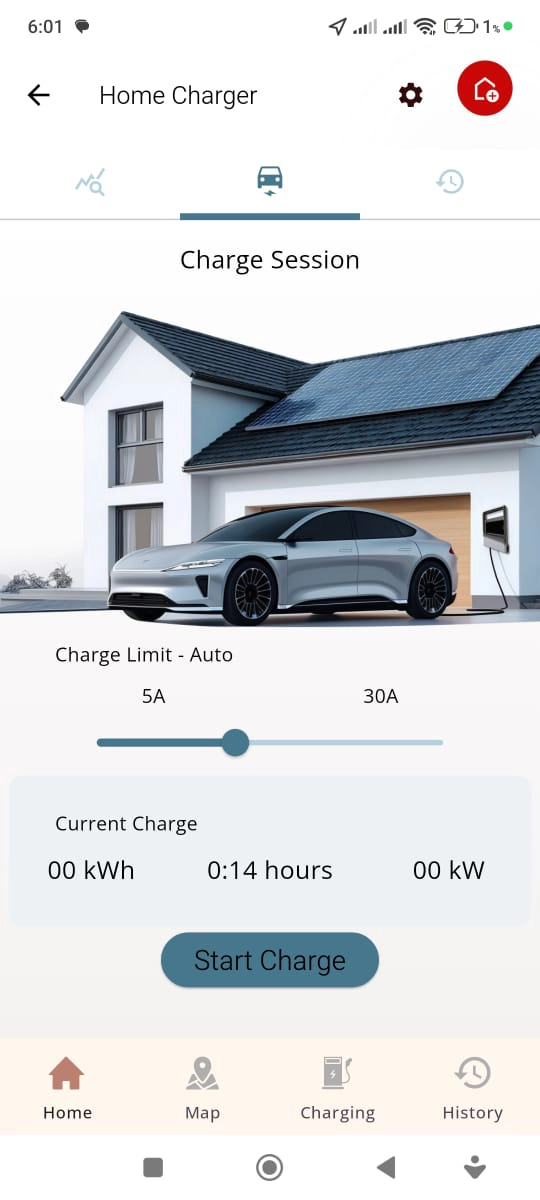

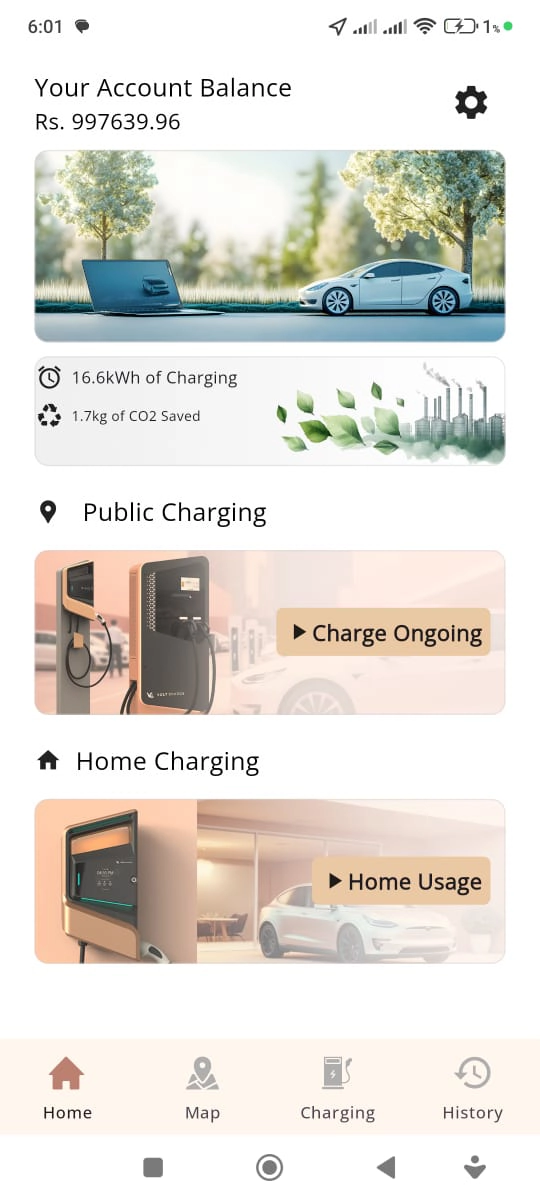

Mobile Application

Dashboard

Multi DC Charger Sites

Multi AC Charger Sites

For sites where multiple vehicles can charge at once. These could be supermarkets, central

highway hubs, city center parking locations etc. Power systems are housed in a central

structure, and multiple charging poles are installed to connect to EVs.

For locations requiring multiple AC charging units but facing power limitations, Volt Charge

AC chargers feature dynamic load balancing. The Charger Management Systems intelligently

distribute available power among vehicles, optimizing usage within the building. This solution

is advantageous for apartments, workplace parking areas, and shopping malls, where

effective management of limited power resources is essential.

Off-Grid

Mobile EV Charging

For locations situated away from the national grid and requiring independence

from it, Volt Charge provides chargers equipped with solar panels and battery

packs in conjunction with the charger unit. Additionally, our chargers seamlessly

integrate with existing solar installations.

Mobile units for both AC and DC charging are equipped with battery packs. The

mobility of these units enables them to charge vehicles that are stranded on the

road without battery power, as well as provide EV charging in areas such as

parking lots, without the need for permanent infrastructure upgrades.

▶A Fully Integrated R&D Team with state-of-the-art equipment for EV charger

design and testing.

▶Continued R&D to keep up with fast evolving EV charger technologies

▶Develop customized hardware and software solutions

▶Expand the scope of EV charging software solutions to connect with energy

providers, cities, governments and other authorities.

Sri Lanka Based R&D

A robust EV charging network in a country needs a strong local after sales service provider. A local manufacture

with a commitment to guarantee after sales quality and reliability gives network operator a critical selling

proposition to ensure that their customers are well protected. Volt Charge will guarantee spare parts availability

with experts to do the need full to ensure the chargers are always ready for operation.

Local Service and

Maintenance

Portfolio

EV Charger Equipment Supplier for BYD Sri Lanka

Part of John Keells Holdings, biggest company in Sri Lanka

Portfolio

The Volt Charge Level 2 EV Charger has earned the

prestigious Red Dot Design Award in 2024, triumphing

over 10,000 entries. This remarkable achievement

highlights the originality and quality of its design,

positioning it competitively alongside the world's

leading brands.

The Volt Charge Level 2 EV Charger has achieved a

significant milestone by winning the prestigious iF Design

Award in 2024, surpassing over 11,000 entries. The

impeccable fit and finishing of the Volt Charge Level 2

Charger align with the standards set by top global brands.

Awards

Let’s Electrify Tomorrow

Dr.Beshan Kulapala

Co-Founder/Director/CEO

+94 777 639 632

info@voltcharge.lk

www.voltcharge.lk

SRI

LANKA
